UNAPOLOGETIC FINESSE
The Vanyar Pro UCI Disc 2024, where a confluence of elegance and aerodynamic efficiency has collided to produce a road machine possessing ultimate climbing capabilities, and race sprinting stiffness to tackle the most challenging of terrains.
FINITE POWER BALANCE
Building on the precision and highly responsive traits of its predecessor, Elves Bikes engineers’ edgy design combines the stiffness and rigidity required to transition the riders raw watts into forward motion, unleashing their true and full potential. A steeper seat tube has been designed to position the rider’s weight directly above the crank to boost power transfer, whilst also lowering their frontal profile to reduce wind resistance and increase traction, enhancing performance when accelerating and climbing. The race ready, hill-climbing geometry places the seat tube angle between 73.5 and 75 degrees, whilst positioning the headtube angle between 72 and 73.5 degrees, to achieve the ultimate climbing rider stance.
COMFORT WITHOUT COMPROMISE
Our ultimate hill-climber has been developed to fit tyres of up to 30c for better traction and power transfer on the steeper gradients, without compromising the handling, confidence and comfort required for the ultimate thrill of the descent. Further, to ensure that riders are equipped with the vast choices that Elves Bikes are synonymous with, we now provide the option of two seat post lengths, (350mm and 400mm) and two seat post offsets (12mm or 25mm).
SCULPTED TO PERFECTION
Perfectly compatible with modern electronic 12 speed groupsets, and sculpted utilising trusted Toray Japanese Carbon Fiber T800 and T1000, with reinforced T1000 stiffness in key areas such as the bottom bracket and headtube, we have prevented power loss caused by flexing during peddling. Elves Bikes have increased the structural integrity through our UCI approved design, resulting in a visually striking frame that is light, strong, and aesthetically appealing.

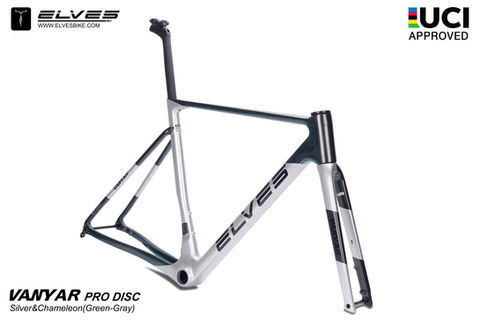

VANYAR PRO DISC 2024 SPECIFICATIONS
FRAME
-
TORAY T800 & T1000 CARBON FIBER
-
SEAT CLAMP: INTEGRATED
-
WEIGHT: FROM 870g UNPAINTED WITH OUT METAL PARTS
-
HEADSET BEARINGS: 1-1/2" x 7mm (UPPER) & 1-1/2' x 8 mm (LOWER)
-
BRAKE: FLAT MOUNT
-
BOTTOM BRACKET: BB386 ID 46mm, WIDTH 86.5mm
-
ELECTRONIC & MECHANICAL GROUPSET COMPATIBLE
-
FULL INTERGRATED CABLE ROUTING
-
THRU AXLE: M 12 x 1.5 x 163mm (143mm)
-
MAX TYRE CLEARANCE: 30c
-
ROTOR SIZE: 140mm OR 160mm
SEAT POST
-
MATERIAL: FULL CARBON
-
SEAT POST LENGTH: 350mm for 47/50/53mm, 400mm for 56/59/62mm
-
WEIGHT 200g (350mm) 215g (400mm)
-
CLAMP: SINGLE BOLT PRECISE ADJUSTMENT
-
SADDLE CLAMPS 7 x 7mm METAL RAILS & 7 x 10mm CARBON RAILS
-
OFFSET: 25mm or 12mm OPTIONS
FORK
-
ELVES VANYAR PRO DISC
-
CARBON FIBER
-
WEIGHT 430g (WITHOUT THRU AXLE
-
OFFSET: 45mm
-
BRAKE: FLAT MOUNT
-
STEERER TUBE LENGTH: 300mm
-
THRU AXLE: M 12 x 1.5 x 121mm
-
ROTOR SIZE 140mm & 160mm
ACCESSORIES
INCLUDED WITH THE FRAME
-
BOTTOM BRACKET (BB386 24mm & BB386 28.9mm DUB & BB386 30mm OPTIONS
-
ELVES HEADSET
-
HANDLEBARS STEM COMPRESSION PLUG
-
INTEGRATED HANDLEBAR SPACERS
-
2 x STANDARD GEAR MECH HANGER
-
CABLE ROUTING ADAPTOR FOR REGULAR HANDLEBAR STEMS
-
2 X INTERNAL CABLE DAMPENER
-
CABLE END STOPS AND ADAPTORS FOR MECHANICAL AND ELECTRONIC GROUPSETS
-
COMPUTER MOUNT (WITH FRAME/BAR & FRAME/BARS/WHEEL BUNDLES)
TORQUE VALUES
-
SADDLE RAILS: 10-12Nm
-
INTEGRATED SEAT POST CLAMP: 10-12Nm
-
HANDLEBAR STEM CLAMP BOLTS: 6Nm
-
FRONT DERAILLUER: 3Nm
-
REAR DERAILLEUR: 2.5Nm
-
WATER BOTTLE CAGE MOUNT 3Nm
-
FRONT/REAR CALLIPER: 6Nm
-
FORK COMPRESSION PLUG: 10Nm
-
FRONT/REAR THRU AXLE: 6Nm
-
COMPUTER MOUNT: 3Nm
FRAME & WEIGHTS
ALL FRAME WEIGHTS ARE FOR FRAME ONLY WITHOUT PAINT AND WITHOUT ANY METAL PARTS +0/-30g
-
47mm - 870g
-
50mm - 890g
-
53mm - 920g
-
56mm - 950g
-
59mm - 980g
-
62mm - 1050g
GLOBALLY TRANSFORMING THE
PRICE POINT OF PERFORMANCE
We are committed to creating far greater rider equality through the production of quality products at affordable price points. We do not believe that riders should have to make the difficult choice and compromise between price or quality, at Elves Bikes, we deliver both.
