SWIM BIKE RUN

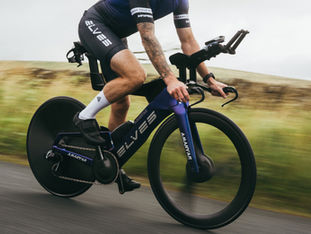

Triathletes demand speed, precision, and comfort, for peak race performance. The Amanyar 1.0 Disc combines optimised aerodynamics, the torsional strength required for effective power transfer, and the adjustability to achieve and maintain race-winning pace over varied distances.
AERODYNAMIC SUPERIORITY
Elves Bikes advanced engineering has produced an aerodynamically superior frameset, which has preserved the torsional strength of traditional double diamond design. To absorb race level braking forces, and with your safety at the forefront of our innovation, our research and development team have retained the seat stay to ensure reliable and stable stopping power. Our truncated airfoil design minimises surface areas exposed to the elements, consequently, we have engineered a frameset that specifically channels airflow efficiently, minimising resistance and reducing turbulence and drag.
BUILT TO GO THE DISTANCE

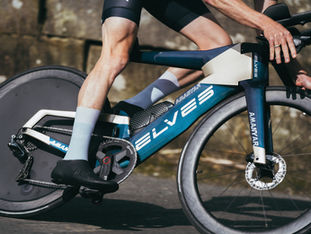

The Amanyar 1.0 has been designed with up to 2.25 litres of fuel and hydration storage, reducing the requirement for an in race stop, gaining you critical seconds. 500ml can be stored in the aerodynamic downtube bottle and up to 750ml behind the saddle. The remaining 1 litre is integrated inside the top-tube, utilising a bladder and hydration tube for handsfree hydration, whilst remaining in the aero position.
ENGINEERED FOR YOUR TOUGHEST RACE
The design of the Amanyar 1.0 positions the rider in an aggressive aerodynamic riding position to further reduce drag and improve efficiency. Applying the EPS and latex bladder moulding technique, we have constructed the frameset utilising the trusted Toray T800 Japanese carbon fibre, reinforced by Toray T1000 in key areas such as the headtube and bottom bracket to obtain the optimal strength to weight ratio. The result is a stiff, highly responsive riding experience that provides the rigidity to transfer raw watts into forward momentum, preventing critical power loss caused by frame flexing during pedaling . Elves Bikes commitment to continual improvement has led to the use of a T47 threaded bottom bracket for ease of building and ongoing maintenance.
EXCEPTIONAL HANDLING & CHOICE
With Triathlons ranging from a sprint to an ultra-ironman, it’s challenging to find a “one bike fits all” solution. To support this, the Amanyar 1.0 is available with a choice of two adjustable aerobars, the Orome AeroRay Sport TT bar, or alternatively the AeroRay Pro Ergonomic TT bar. This aids triathletes to design their cockpit to their specification in accordance with the individual race conditions and distance.
FRAME
-
FULL TORAY T800 & T1000 CARBON FIBER
-
SEAT CLAMP: INTEGRATED
-
WEIGHT: FROM 1640g 48cm UNPAINTED WITH OUT METAL PARTS
-
HEADSET BEARING: LOWER (Φ52X7X45°), UPPER (Φ41.8X6.5X45°)
-
BRAKE: FLAT MOUNT
-
BOTTOM BRACKET: T47 THREADED (24mm Shimano / 28.99mm SRAM DUB / 30mm Rotor)
-
Di2 & SRAM AXS ELECTRONIC & MECHANICAL GROUPSET COMPATIBLE
-
FULL INTERGRATED CABLE ROUTING
-
EPS+LATEX BLADDER MOULDING TECHNIQUE
-
THRU AXLE: M12 x P1.0 x 170 mm (142mm)
-
MAX TYRE CLEARANCE: 700x28c
-
ROTOR SIZE: 140mm OR 160mm
-
RIDER WEIGHT LIMIT 100kg
SEAT POST
-
MATERIAL: FULL CARBON
-
SEAT POST LENGTH 300mm
-
CLAMP: SINGLE BOLT PIVOT PRECISE ADJUSTMENT
-
SADDLE CLAMPS 7 x 7mm METAL RAILS & 7 x 10mm CARBON RAIL
HANDLEBARS
-
MATERIAL: FULL CARBON
-
TWO MODEL OPTIONS
-
AERORAY - PRO TT BARS
-
AERO RAY - SPORT TT BARS
-
-
TWO SIZE OPTIONS
-
400mm
-
420mm
-
-
HEIGHT & FORE & AFT ADJUSTABLE TRI EXTENSION BARS
-
COMPATIBLE WITH SHIMANO & SRAM REMOTE BLIPS
FORK
-
FULL CARBON FIBER
-
WEIGHT 580g (WITHOUT THRU AXLE
-
OFFSET: 45mm
-
BRAKE: FLAT MOUNT
-
STEERER TUBE LENGTH: 250mm
-
THRU AXLE: M 12 x P1.5 x 120mm
-
ROTOR SIZE 140mm & 160mm
STEM
-
MATERIAL: AL 7075 CNC BLACK
-
LENGTH: 100mm
-
HANDLEBAR CLAMP: Φ31.8mm
-
HANDLEBAR CLAMP WIDTH: 48mm
-
RISE: -17°
ACCESSORIES
INCLUDED WITH THE FRAME
-
BOTTOM BRACKET: T47 THREADED WITH 24mm Shimano / 28.99mm SRAM DUB / 30mm Rotor OPTIONS
-
UDH DERAILLEUR HANGER X2
-
ELVES HEADSET
-
DOWNTUBE BOTTLE CAGE+BOTTLE
-
HYDRATION BLADDER BAG
-
SEATPOST BOTTLE CAGE MOUNT
-
STEM
-
FRONT DERAILLEUR MOUNT COVER
TORQUE VALUES
-
SEATPOST BOTTLE MOUNT BOLTS: 4Nm
-
SADDLE RAIL BOLTS: 12Nm
-
INTEGRATED SEATPOST CLAMP: 8-12Nm
-
FORK STEERER TOP CAP BOLT: 6Nm
-
HANDLEBAR CLAMP BOLTS: 12Nm
-
STEM TOP COVER BOLTS: 2Nm
-
FRONT DERAILLEUR HANGER: 3Nm
-
UDH BOLT: 25Nm
-
WATER BOTTLE CAGE BOLTS:3Nm
-
FRONT/REAR CALIPER: 6Nm
-
FORK STEERER Compression Plug：10-12Nm
-
FRONT/REAR Thru Axle: 10Nm-12Nm
-
COMPUTER MOUNT: 3Nm
-
TOPTUBE HYDRATION BLADDER CAP BOLT:2Nm
FRAME & WEIGHTS
-
ALL FRAME WEIGHTS ARE FOR FRAME ONLY WITHOUT PAINT AND WITHOUT ANY METAL PARTS +0/-30g
-
45mm - 1560g
-
48mm - 1640g
-
51mm - 1740g
-
54mm - 1850g
-
-
FORK: 560g( SIZE 48, UNPAINTED W/O THRU AXLE)
-
SEATPOST WEIGHT: 288g
-
STEM WEIGHT: 290g
-
FRONT THRU AXLE:43g
-
REAR THRU AXLE: 30g
-
WATER BOTTLE+BOTTLE CAGE: 93g
-
HYDRATION BLADDER SYSTEM: 100g
-
SINGLE COLOUR PAINT: 80g
-
TWO-TONE：120g
-
THREE-TONE: 180g
GLOBALLY TRANSFORMING THE
PRICE POINT OF PERFORMANCE
We are committed to creating far greater rider equality through the production of quality products at affordable price points. We do not believe that riders should have to make the difficult choice and compromise between price or quality, at Elves Bikes, we deliver both.
